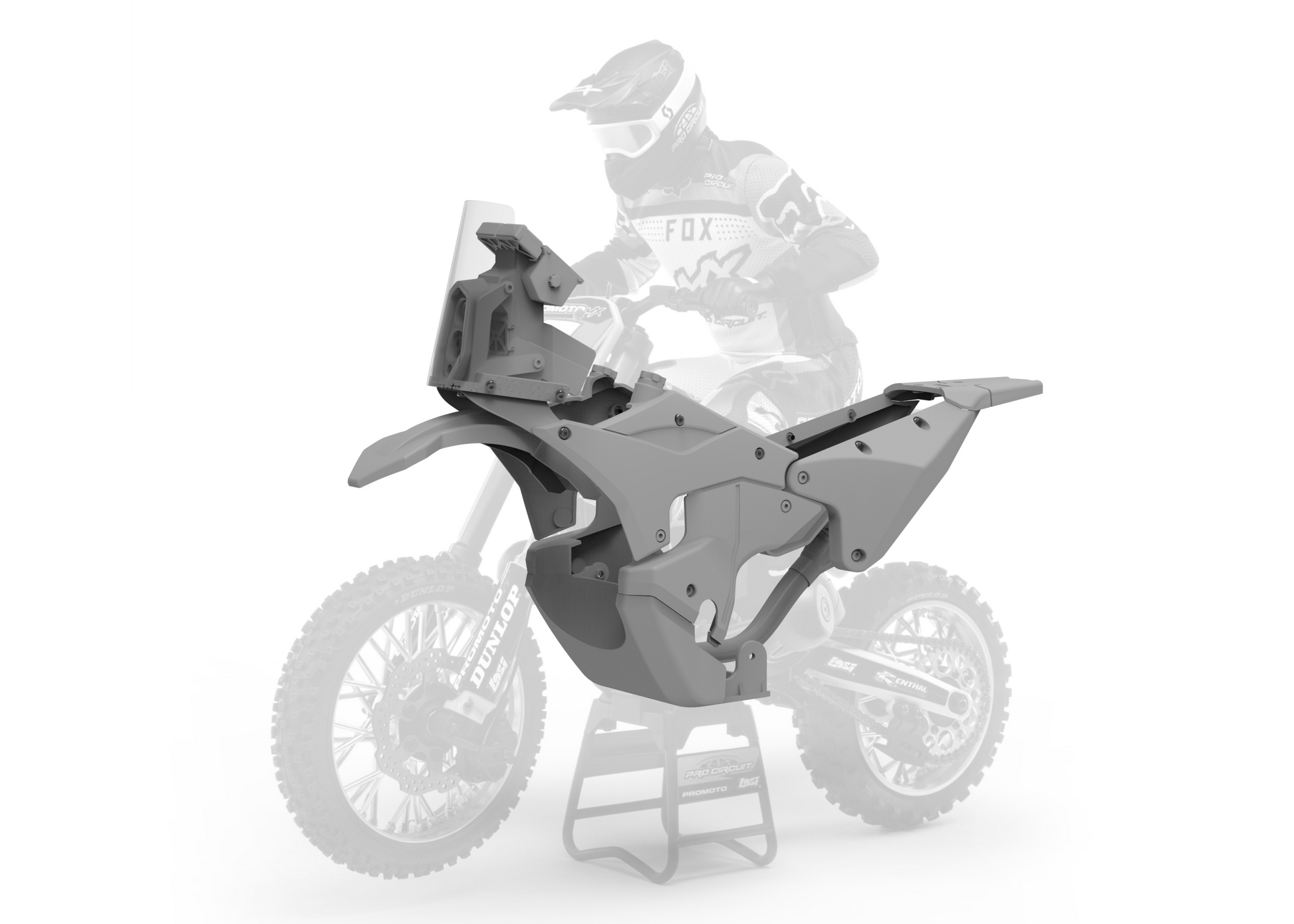

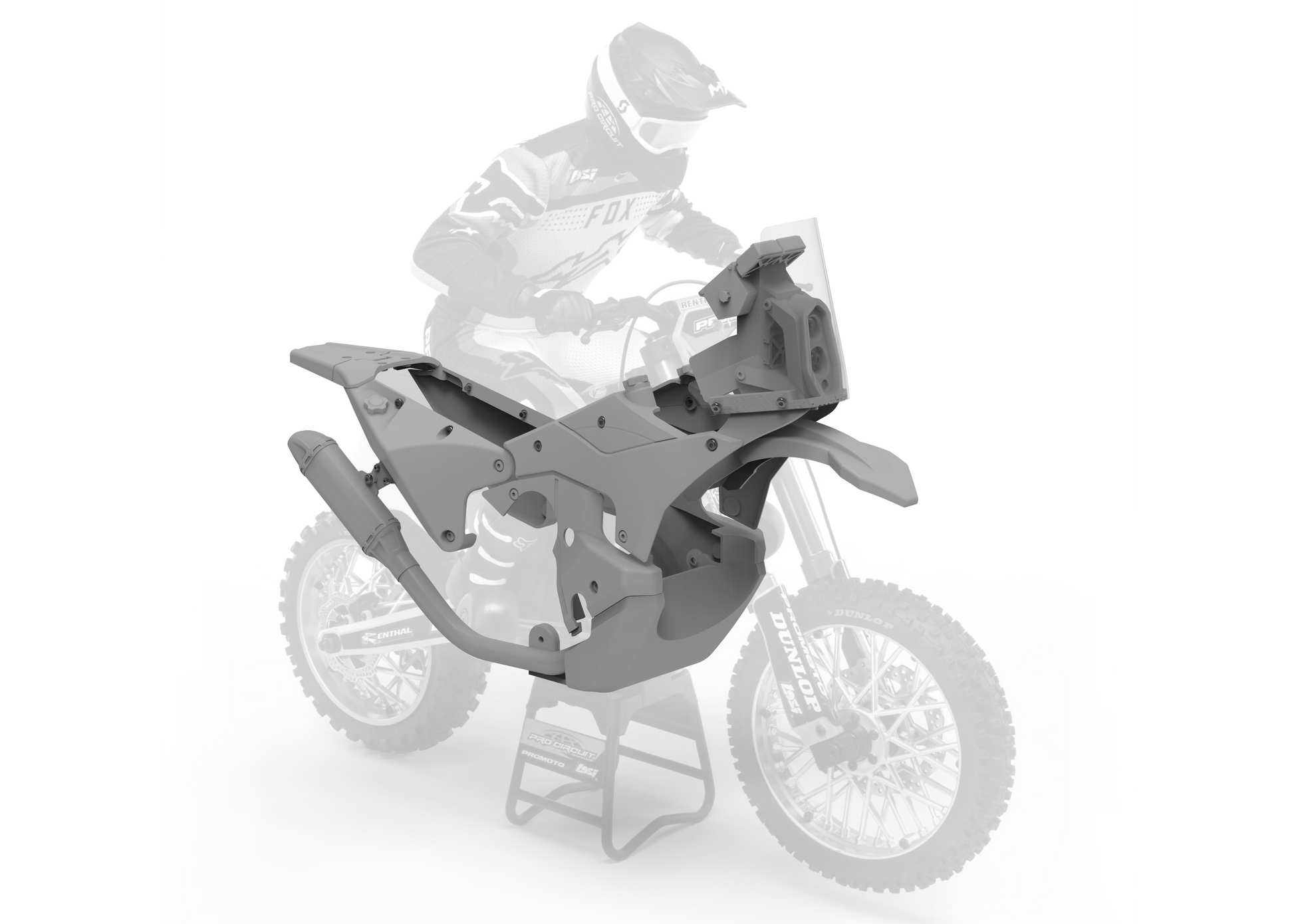

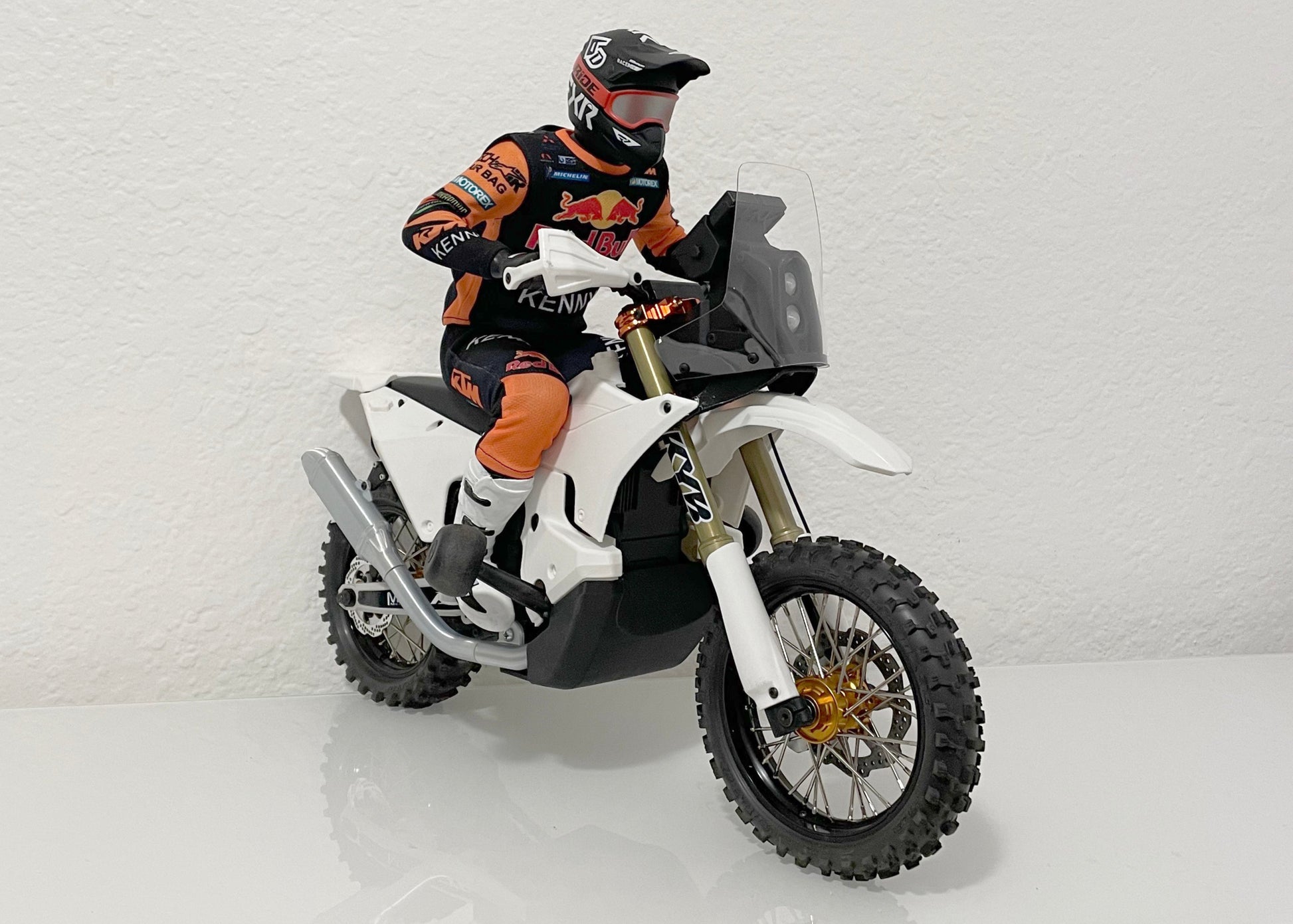

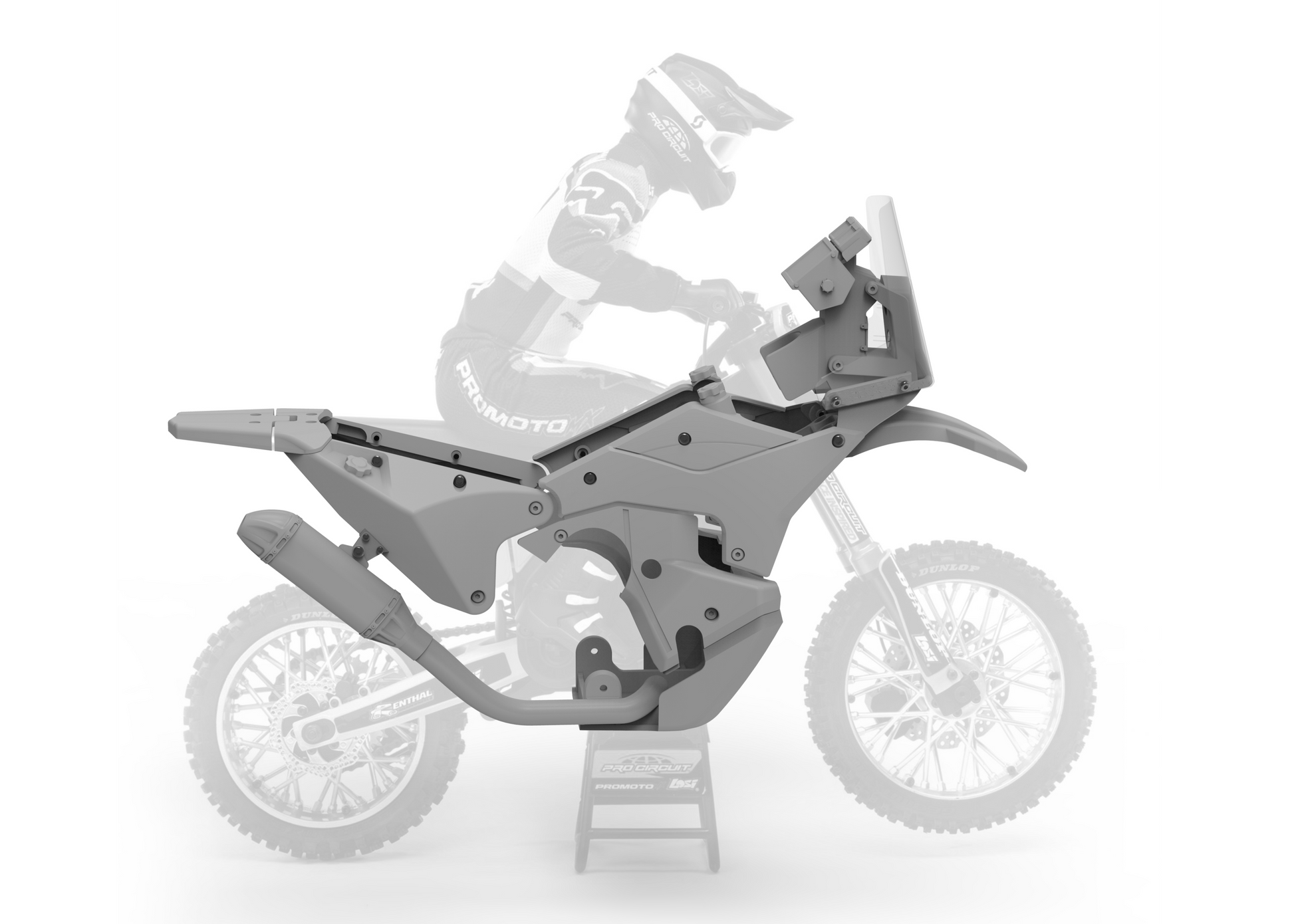

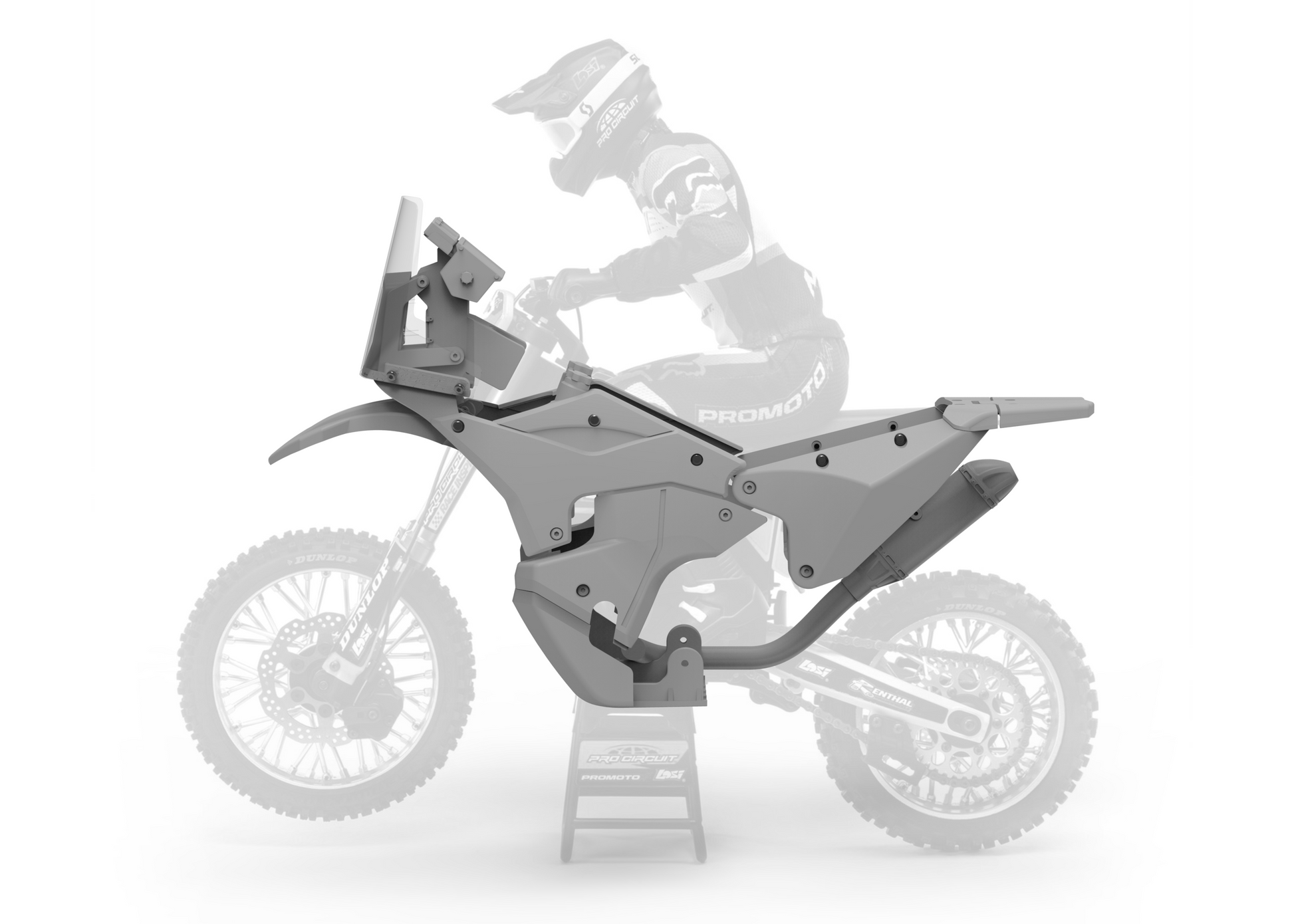

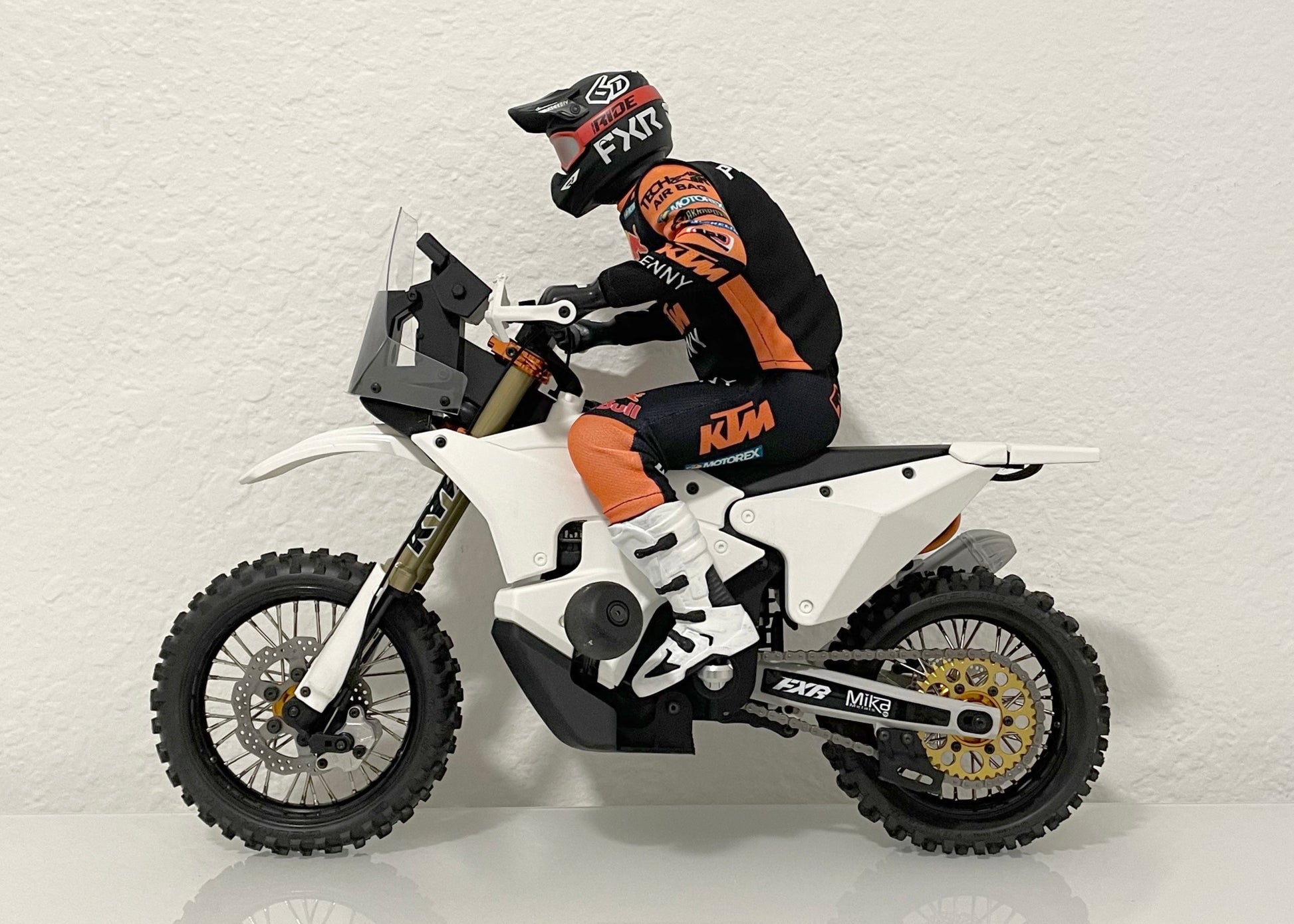

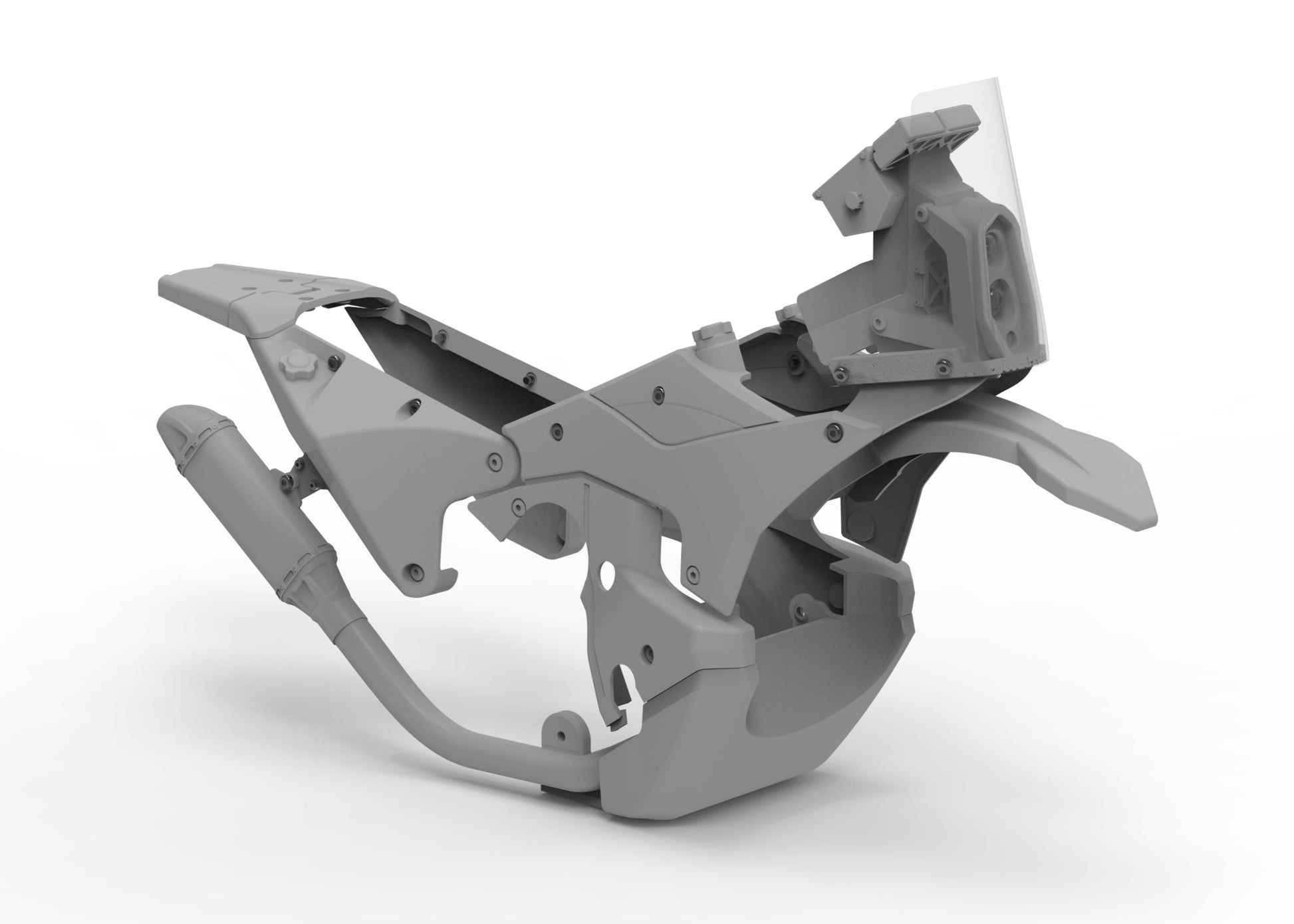

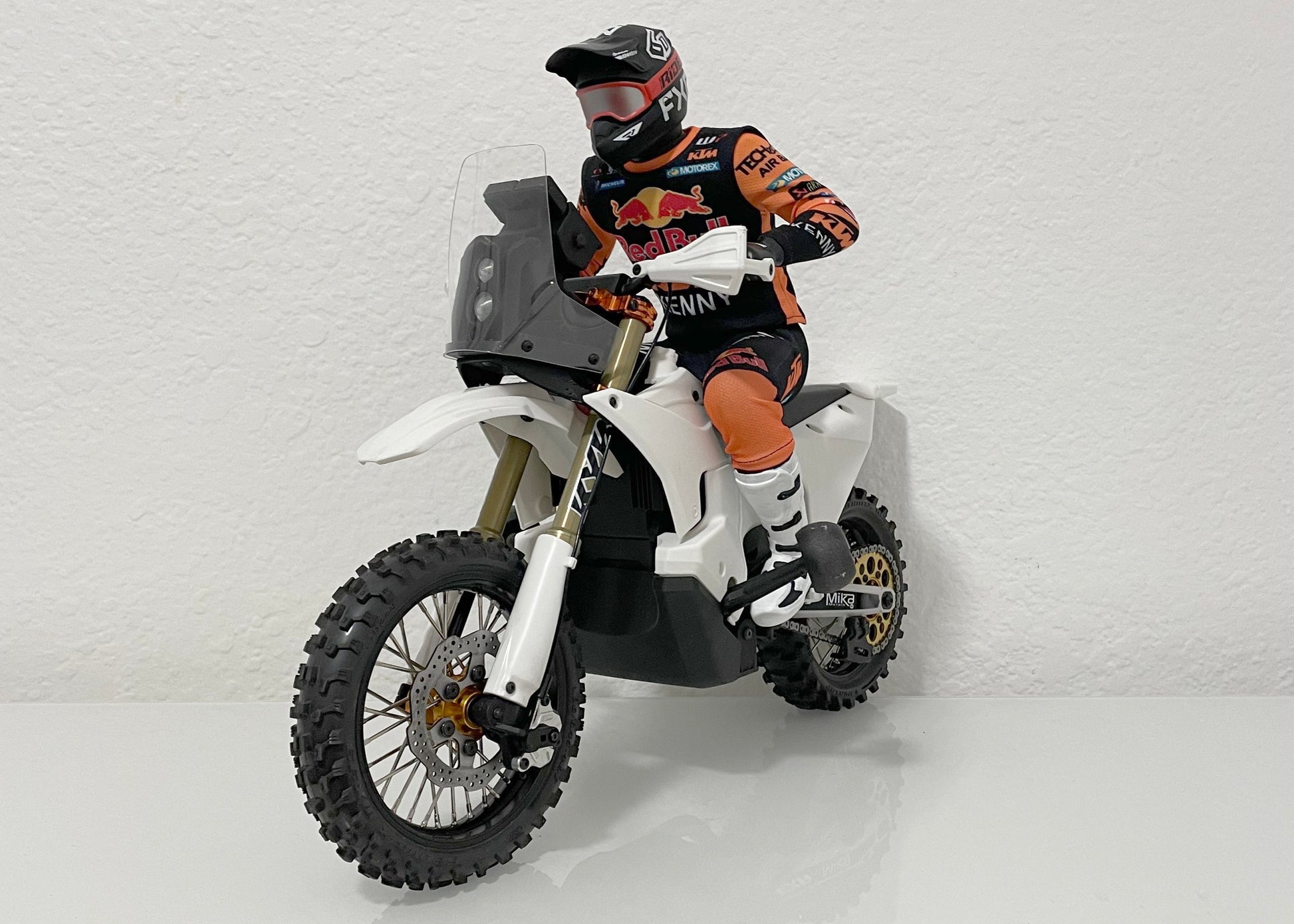

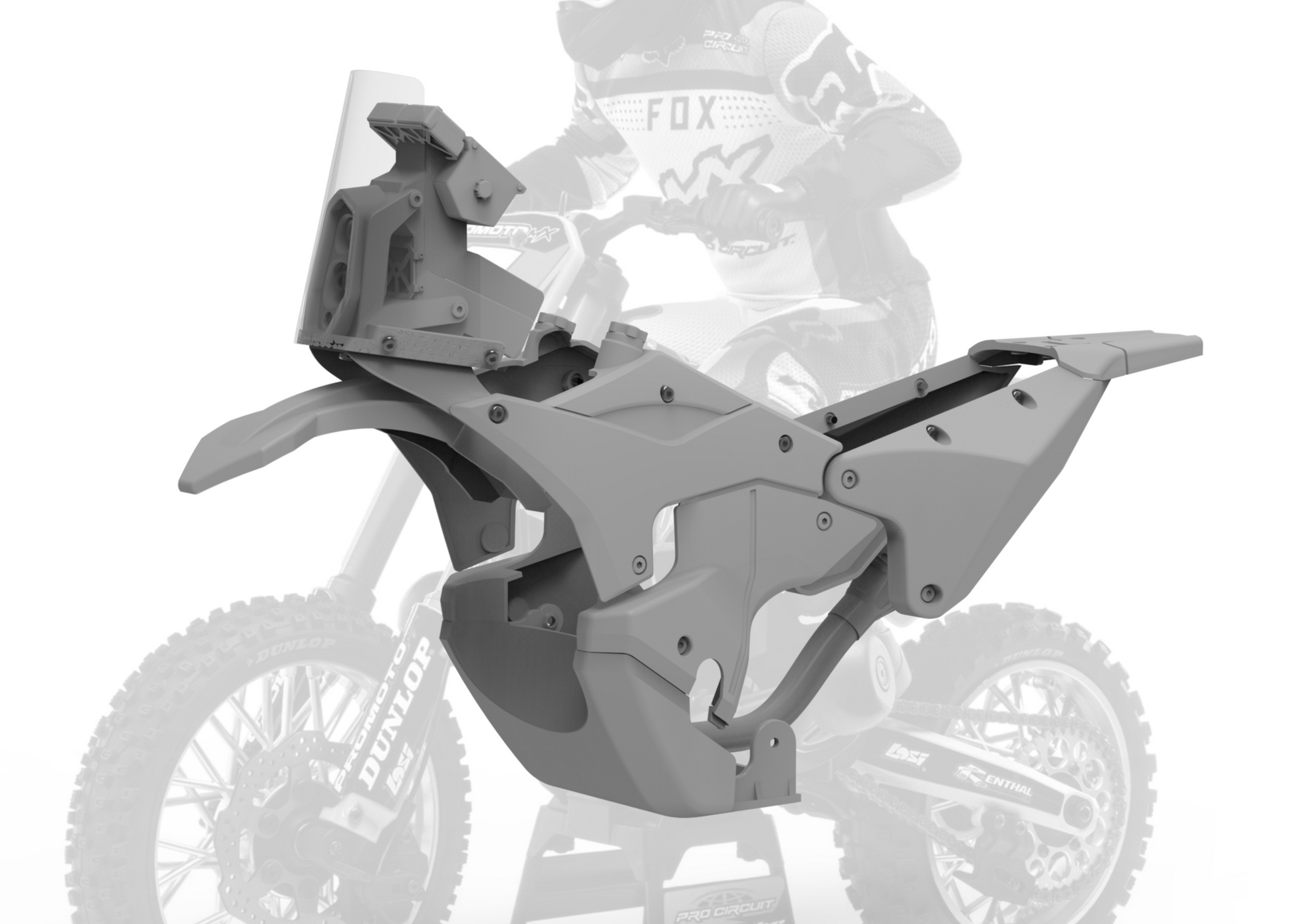

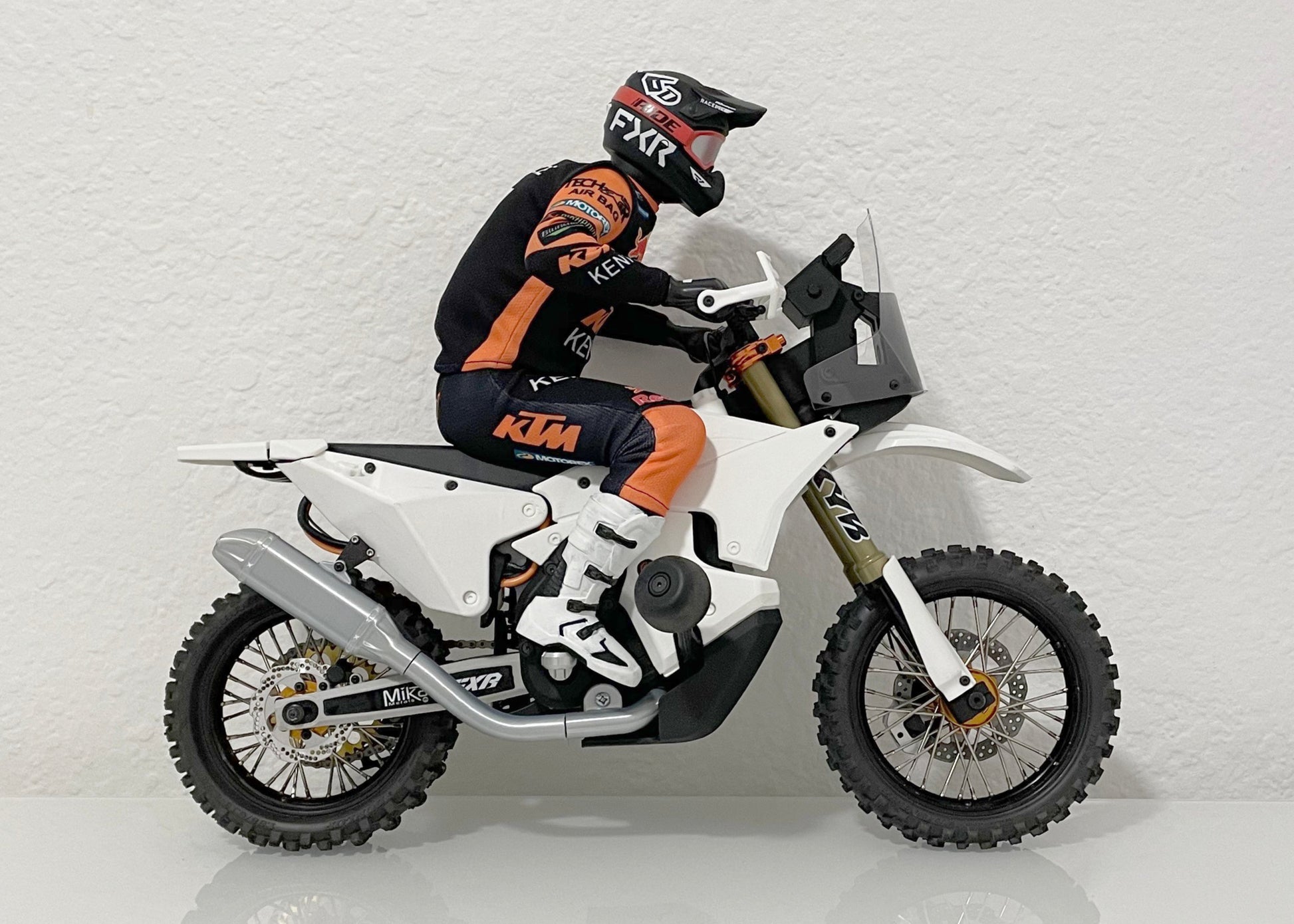

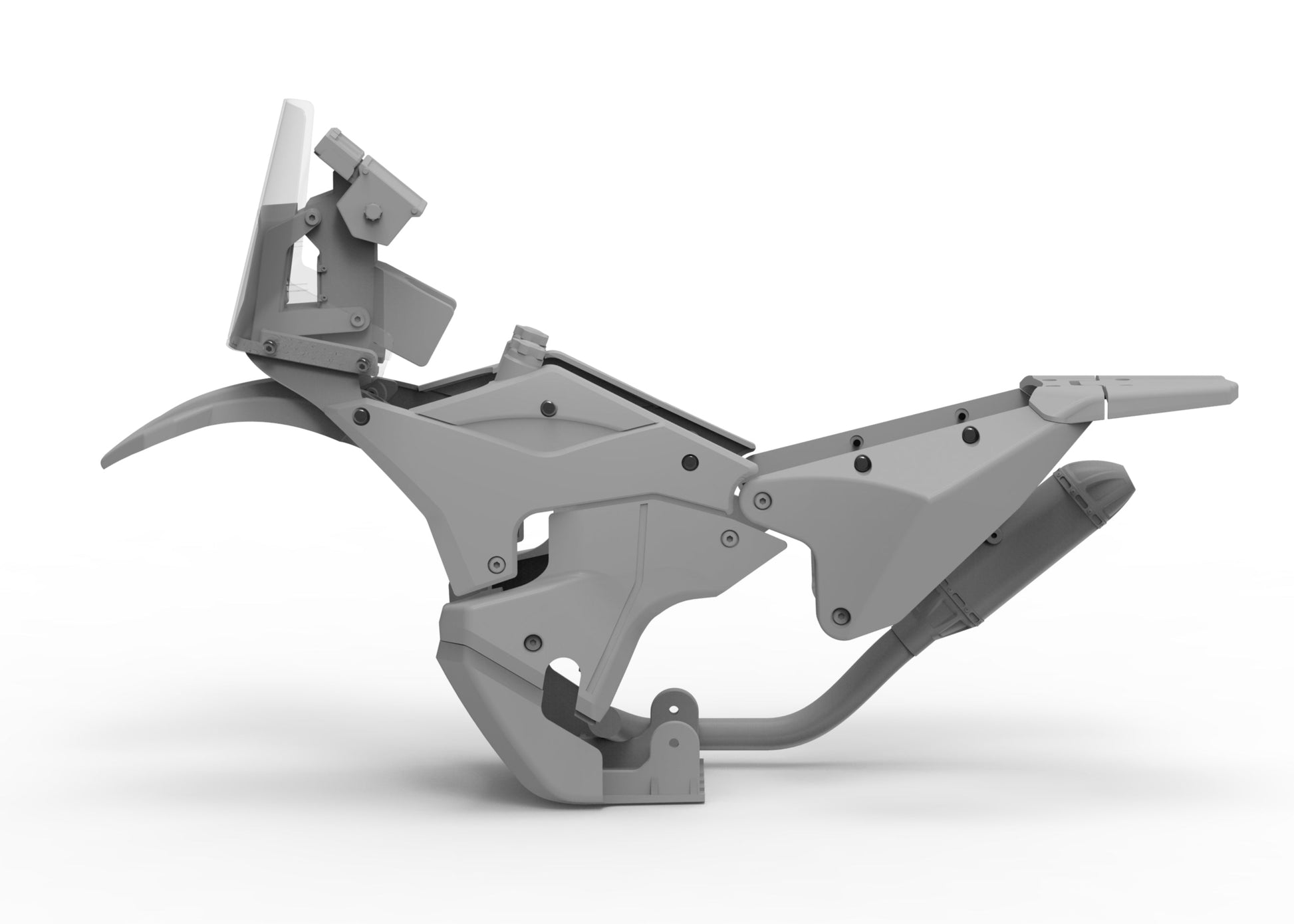

The MX Dakar conversion set for the Losi Promoto MX. This conversion set lets you convert a Losi Promoto MX to a Dakar rally style bike. This set has been designed to be as durable as possible if the filament recommendations are followed - However, due to the design of the exposed light pod please do not expect this conversion to be as durable as a stock Promoto MX.
Features:
Flexible TPU exhaust mount.
Folding rear mud guard.
Flexible TPU light pod mount.
Lexan front screen.
Light pod can accept LEDs
Installation: To improve durability we recommend using the standard Losi front mud guard, shock shields and handlebar guards (sold separately). To make the front screen, we provide a template to cut from 1mm Lexan sheet (sold separately).
You will also need the following screws:
2 - Hex head M2x8mm
4 - Button head M3x6mm
5 - Button head M3x10mm
2 - Countersunk M4x10mm
1 - Button head M4x20mm
1 - Button head M4x25mm

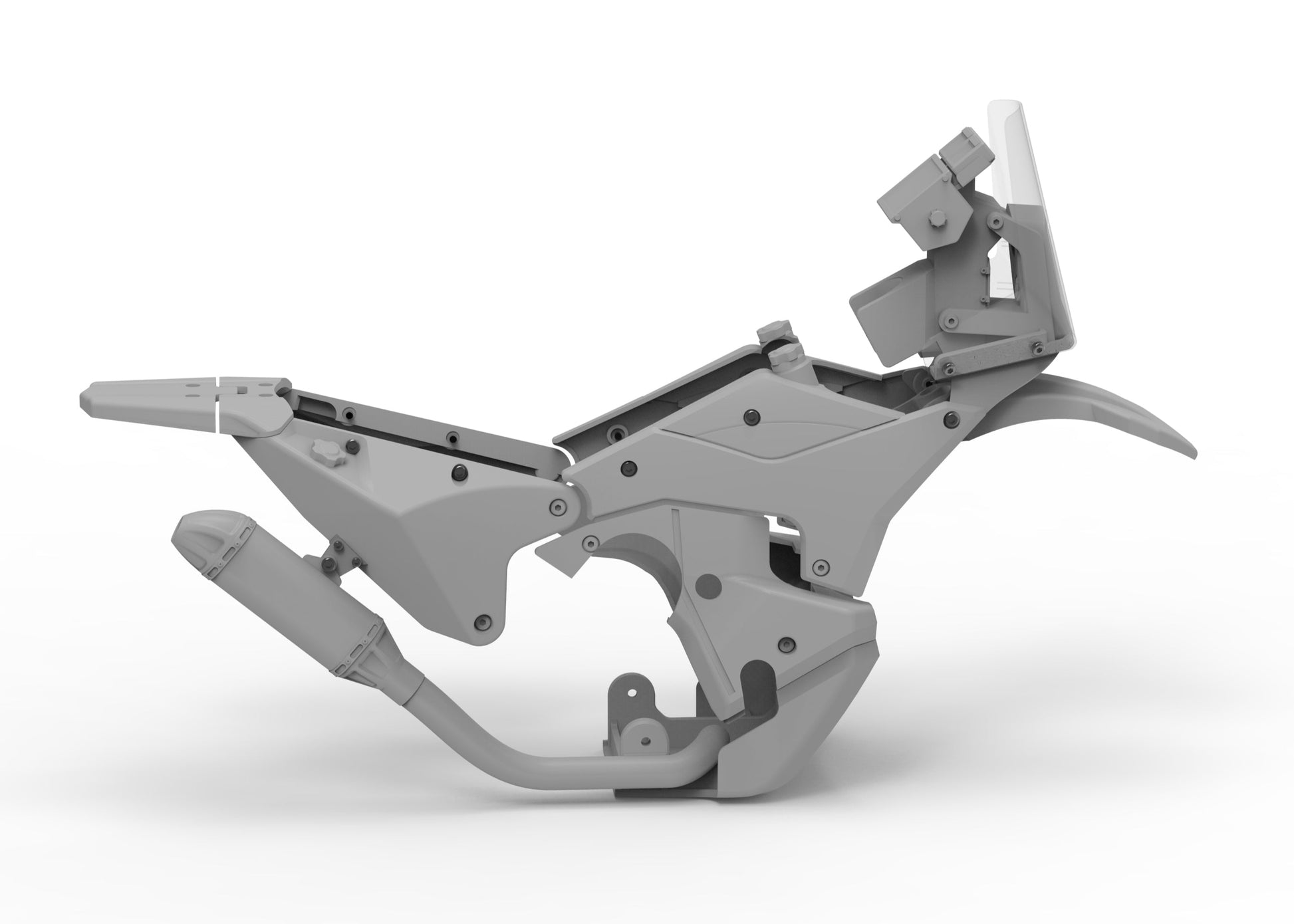

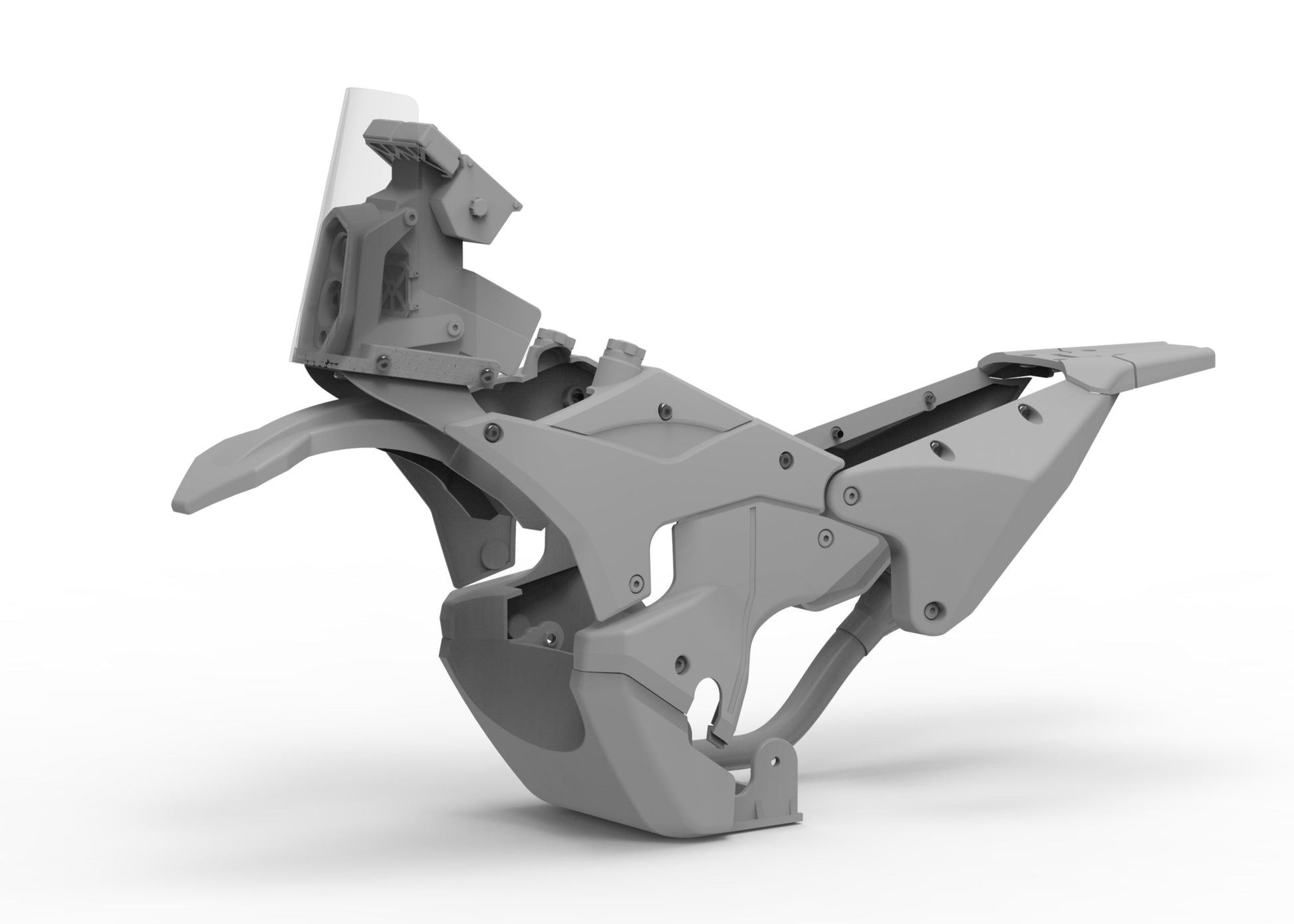

To install: Remove all stock panels. The main Dakar body panels mount using the stock screws in the stock mount points. The front light pod clicks into place and is retained with the TPU mount screws to the light bod and the body panels with 4 Button head M3x10mm screws. The skid plate requires you to replace 4 stock screws. Use 2 Countersunk M4x10mm at the front of the skid. A Button head M4x20mm used on the lower left side, you will need to use a Button head M4x25mm to mount the skid and the exhaust on the right side. The exhaust is in 3 parts and its important to use TPU parts to mount and connect the exhaust together. The exhaust mounts to the right side gas tank with 2 smaller Hex head M2x8mm screws and 1 Button head M3x10mm with the flexible TPU plate. Finally, the light pod screen needs to be cut from 1mm Lexan (or clear plastic bottle as an alternative) using the included template and mounts to the light pod using 4 Button head M3x6mm.
The STL 3D files and G-codes are included in the download.The G-codes can be sent directly to your printer and come with our recommended settings, orientation & supports for printing in PLA filament. These G-codes are a recommended starting point for those new to 3D printing.
G-codes are Included for the Bambu Lab (X1) & Prusa series of printers. The Prusa G-codes should also work on other printers such as the Ender series of printers that have a print bed 20x20cm or larger.
